Hdmi Video Capture Card With Loop Out - Black
(0 Review)
0
Orders
UGX 82,000
- Nothing tax configuration added for this product
Product details
HDMI VIDEO CAPTURE WITH LOOP OUT.
This video capture card can capture both HDMI video and HDMI audio, sending audio and video signals
to computers and smartphones for preview and storage. Plug and play, no need
to install other driver software, suitable for high definition acquisition,
teaching recording, medical imaging, etc.

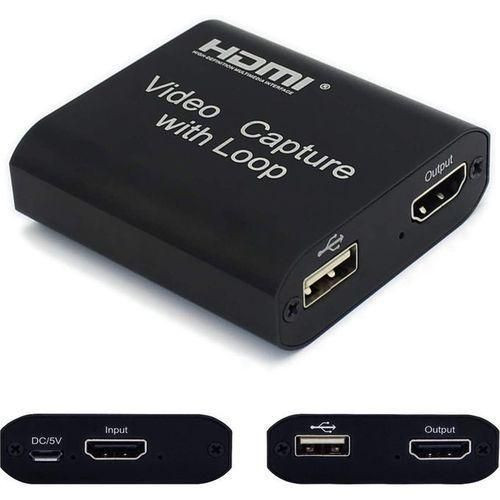

How to connect? Micro USB power cable connects to Micro USB port to supply power
Input port: input the stream video through the HDMI "Input" port.
Output port: connect the monitor through the HDMI "Output" port to
preview the stream video in real time. Connect it to the computer through the
USB 2.0 port, use "VLC / OBS / Amcap, etc." to edit the video at the
same time.
Specifications
Key Features
- Support HDMI loop out
- Support input HDMI max 4K@60Hz, max output HDMI & USB 1080P@30Hz
- Support most acquisition software, such as VLC、OBS 、Amcap, etc;
- Conform to USB Video and UVC standard
- Conform to USB Audio UAC standard
- Support video format 8/10/12 bit Deep color
- Video output format YUV、JPEG
- Support audio format L
- Max working current 0.7A/5V DC
- Operating Temperature range (-10 to +55℃)

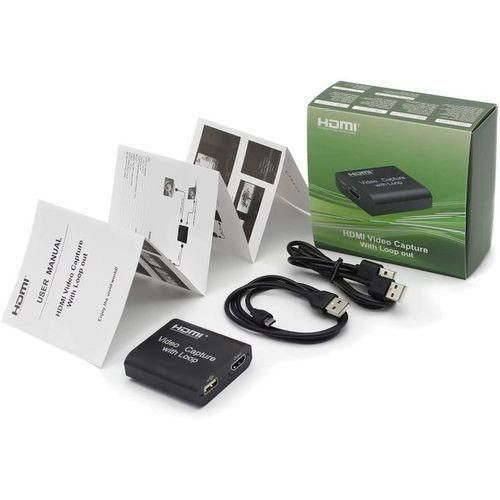

What’s in the box
- 1 * Audio Video Capture Card with Loop Out
- 1 * USB 2.0 cable
- 1 * Micro USB power cable
- 1 * User manual
