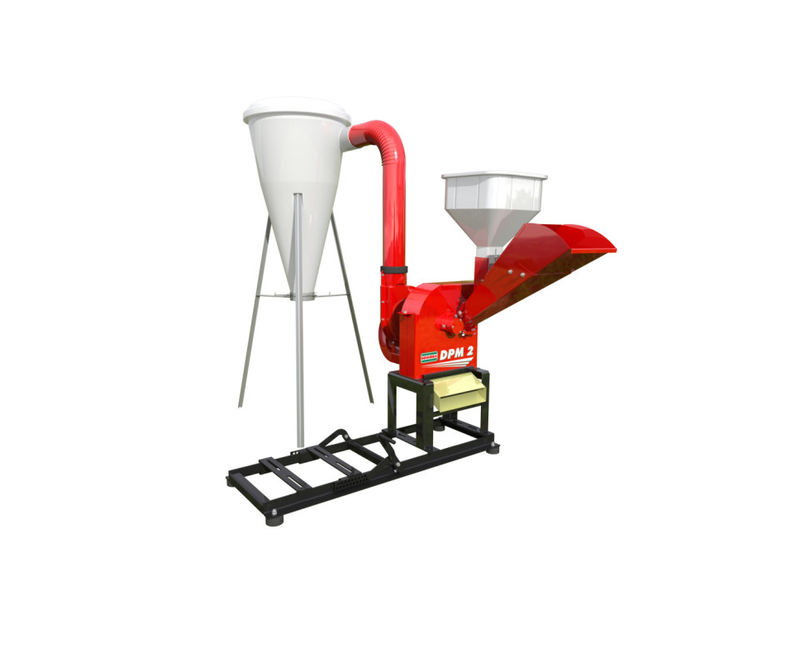

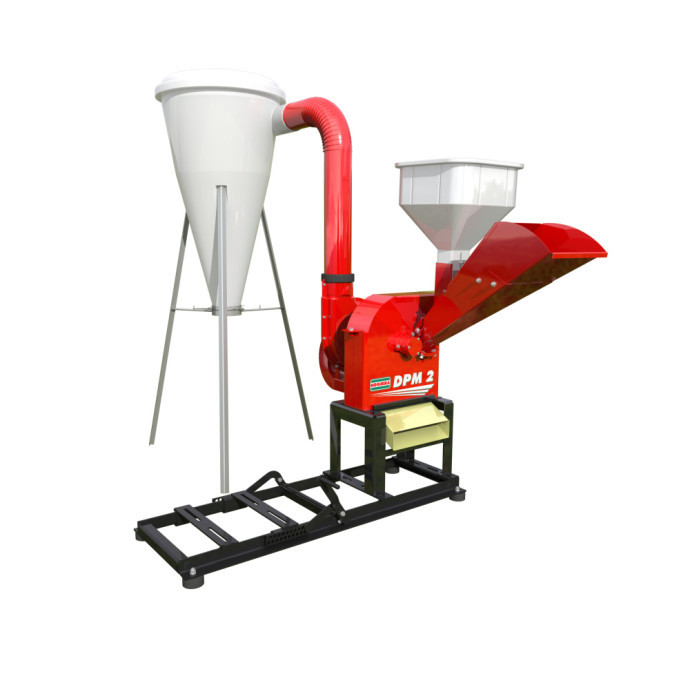

Product Description The Nogueira DPM-2 with cyclone is a powerful, professional-grade forage chopper and grain mill designed for medium to large livestock farms that require high daily output combined with a clean, dust-free workspace. It effortlessly chops, grinds, and shreds green forage (sugarcane, elephant grass, corn stalks, sorghum, king grass, legumes) and dry grains (corn cobs with grain, soybeans, wheat, coffee husks) at impressive speeds of up to 4,000 kg/h fresh forage and 1,200 kg/h dry material. The heavy-duty rotor with 2 reversible tempered hammers delivers uniform particle size, while the included high-efficiency cyclone separates dust and directs processed material straight into bags or storage — perfect for intensive, non-stop operation. Built on a reinforced integrated motor base with thick-gauge steel, this machine is famous for its legendary durability and low maintenance. Complete with 6 interchangeable sieves for total texture control.

Product Attributes • Model: DPM-2 (Green Line series – complete with cyclone) • Functions: High-volume chopping, grinding, and shredding of green forage and dry grains • Rotor: 2 reversible, tempered high-resistance hammers • Sieves Included: 6 units – 0.8 mm, 1.5 mm, 3 mm, 5 mm, 10 mm + 1 blind sieve • Cyclone: High-efficiency dust-separation cyclone with bagging spout • Motor Compatibility: Integrated base for 7.5–10 CV (HP) electric motor (monophasic 220 V or triphasic 220/380 V – motor optional) • Production Capacity: Up to 4,000 kg/h (green forage) | 800–1,200 kg/h (dry grains, depending on sieve) • Materials: Reinforced thick-gauge steel with anti-corrosion paint • Dimensions (approx.): 130 cm (L) × 90 cm (W) × 180 cm (H) with cyclone • Weight: ≈ 220–250 kg (without motor, with cyclone) • Drive System: Heavy-duty belt drive with reinforced pulley and bearings • Maintenance: Quick blade reversal, easy sieve change, centralized grease points • Safety Features: Full protective guards, emergency stop, cyclone safety screen

Best Possible Applications • Medium & Large Dairy/Beef Farms: Process 3–4 tons/hour of fresh forage with direct clean bagging for cattle feeding or silage. • Commercial Pig & Poultry Units: Dust-free grinding of large volumes of grains and concentrates. • Silage & Ration Plants: Cyclone allows instant filling of 50–100 kg bags or drums without mess. • Farmer Cooperatives & Contractors: High throughput and clean operation for shared or custom processing services. • Premium Feed Production: Consistent particle size and zero dust contamination for top-quality animal rations.

Maize

Full cob

Silage

5mm

3mm

0.8mm

5mm

10mm

Smooth

plate

600-850

550-700

100-150

300-450

500-700

2000-3000
