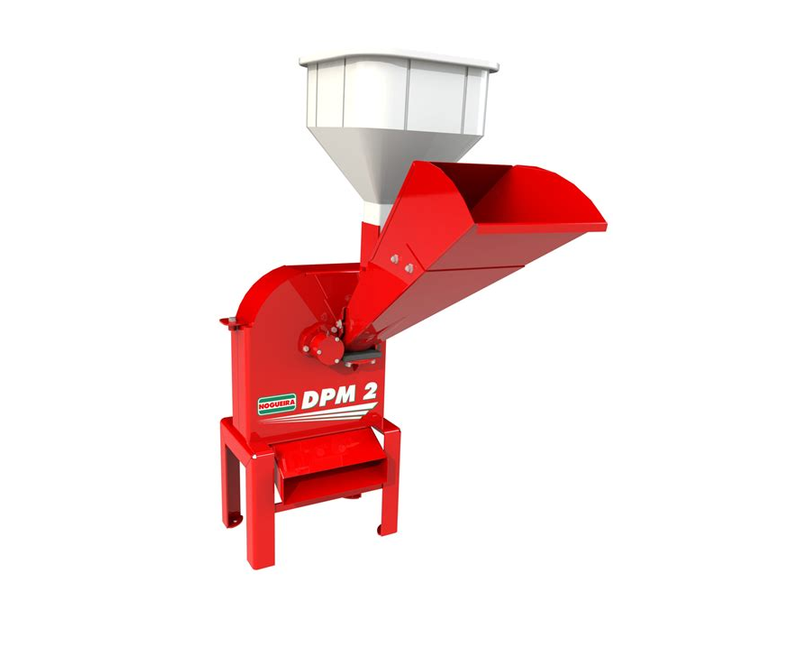

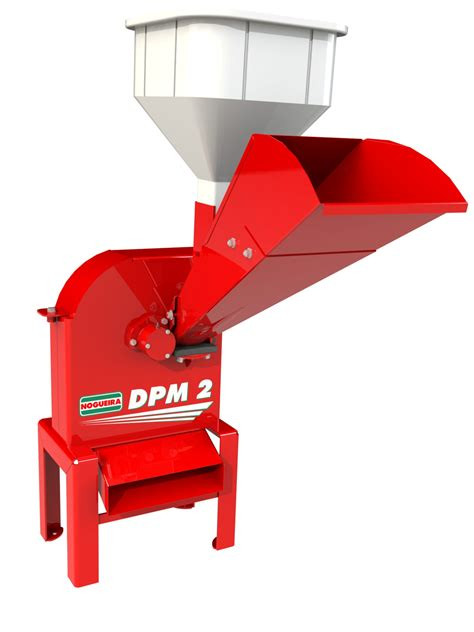

Product Description The Nogueira DPM-2 is a heavy-duty, medium-capacity forage chopper and grain mill built for farmers who need higher daily output without moving to large industrial machines. Perfectly suited for medium-sized livestock operations, it chops, grinds, and shreds green forage (sugarcane, elephant grass, corn stalks, sorghum, king grass, legumes) and dry grains (corn cobs with grain, soybeans, wheat, coffee husks) with outstanding uniformity and speed. Equipped with a reinforced rotor and 2 reversible tempered hammers, it achieves up to 4,000 kg/h in fresh forage and 1,200 kg/h in dry grains. Its integrated motor base and all-steel construction deliver legendary Nogueira durability, while the full set of sieves gives total control over particle size. This version comes without cyclone — lighter, lower cost, and ideal for users who bag manually or work in well-ventilated areas.

Product Attributes • Model: DPM-2 (Green Line series – without cyclone) • Functions: High-volume chopping, grinding, and shredding of green forage and dry grains • Rotor: 2 reversible, tempered high-resistance hammers • Sieves Included: 6 units – 0.8 mm, 1.5 mm, 3 mm, 5 mm, 10 mm + 1 blind sieve • Motor Compatibility: Integrated base for 7.5–10 CV (HP) electric motor (monophasic 220 V or triphasic 220/380 V – motor optional) • Production Capacity: Up to 4,000 kg/h (green forage) | 800–1,200 kg/h (dry grains, depending on sieve) • Materials: Reinforced thick-gauge steel with anti-corrosion paint • Dimensions (approx.): 110 cm (L) × 70 cm (W) × 120 cm (H) • Weight: ≈ 180–210 kg (without motor, without cyclone) • Drive System: Heavy-duty belt drive with reinforced pulley and bearings • Maintenance: Fast blade reversal, easy sieve change, centralized grease points • Safety Features: Full protective guards, emergency stop button

Best Possible Applications • Medium-Scale Dairy & Beef Farms: Process 3–4 tons/hour of fresh forage for cattle feeding or silage. • Pig & Poultry Operations: Grind large volumes of corn, soybean, and supplements for balanced rations. • Farmer Cooperatives: High daily throughput for shared use during harvest peaks. • Silage Production: Adjustable output from very fine (concentrates) to coarse (bedding or fermentation). • Budget-Conscious Upgrades: Perfect step-up from DPM-1 for users who already own a motor and don’t need dust collection.

The Nogueira DPM-2 without cyclone is the proven Brazilian workhorse that delivers massive productivity, bullet-proof reliability, and outstanding value — built for serious farmers who measure success in tons per day.

Maize

Full cob

Silage

5mm

3mm

0.8mm

5mm

10mm

Smooth

plate

500-750

350-550

60-100

200-350

400-500

1000-2000
